Stainless steel slitting coils are narrow strips produced by cutting a wider stainless steel master coil into specific widths. Manufacturers use these coils when their production lines require material that matches exact dimensions, eliminating the need for additional cutting before processing.
Slit coils are widely used in industries such as automotive, construction, food processing, appliance manufacturing, and tube production. Since the material is supplied in the required width, manufacturers can reduce material waste, improve production efficiency, and maintain consistent product quality.
The slitting process involves uncoiling a master coil, cutting it into narrower strips using rotary knives, and recoiling the finished strips into individual coils. Depending on the application, slit coils can be supplied in various grades, thicknesses, widths, and surface finishes.
Whether used for automotive exhaust systems, kitchen equipment, architectural components, or welded tubes, stainless steel slitting coils provide a practical and cost-effective solution for modern manufacturing operations.
What Is a Stainless-Steel Slitting Coil?
A slit coil is a narrow strip of stainless steel produced by cutting a wider “mother coil” lengthwise. Unlike standard wide sheets, a slit coil is tailored to a specific, highly accurate width to feed directly into specialized manufacturing machinery. The main difference between a mother coil and a slit coil is their width and intended application. A mother coil (or master coil) is the massive, full-width steel roll produced directly by the rolling mill, typically measuring between 1,000 mm and 1,500 mm wide. Mother coils are easier to transport and store before further processing but are too wide for most production lines. A slit coil is produced by cutting a mother coil into multiple narrower strips ranging from a few millimeters to several centimeters wide to match specific factory tooling.

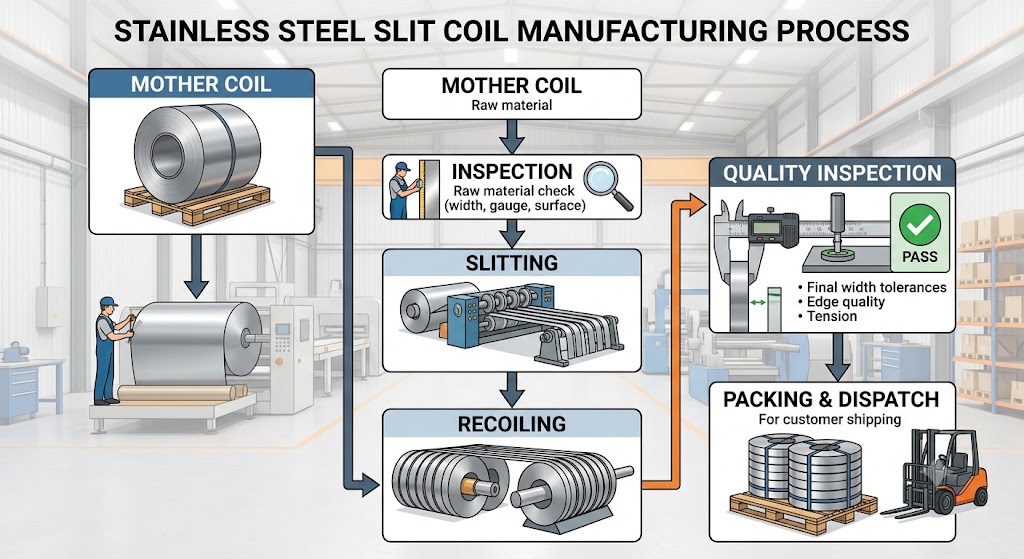

Production Process
Slit coils are manufactured through a continuous mechanical process on an industrial slitting line.
-
Uncoiling: The heavy mother coil is mounted onto a mandrel that rotates to unfurl the steel sheet.
-
Slitting: The flattened steel passes through a slitting head equipped with sharp, circular rotary knives. These knives are precisely spaced to shear the wide sheet into multiple narrower strips simultaneously.
-
Tensioning & Recoiling: Because variations in the steel’s thickness can cause strips to wind unevenly, a tensioning unit applies uniform pressure across all strands. The separated strips are then wound onto an exit mandrel, forming individual slit coils ready for packaging.
In high-speed manufacturing, precise width tolerance the allowable deviation from the target width is critical.
-
Coil Width Examples: A manufacturer producing precision tubing might order slit coils with a target width of ±0.5 mm, requiring a strict tolerance of ±0.1 mm. Conversely, a less critical application, like structural brackets, might utilize a wider 300 mm slit coil with a more forgiving tolerance of pm 0.5 mm
-
Industrial Requirements: Automated n production lines require consistent dimensions to ensure smooth operation and reliable product quality. If a slit coil is even fractionally too wide, it can jam feeding guides, shatter progressive stamping dies, or cause severe edge burrs. If it is too narrow, the final product may fail structural inspections or suffer from alignment defects during automated welding and assembly. Strict width tolerances ensure seamless machine operation and minimize costly material scrap.
Stainless Steel Slitting Coil Grades
| Grade | Features | Applications |
|---|---|---|
| SS 201 | Economical, high work-hardening rate, moderate corrosion resistance. | General fabrication, catering equipment, and decorative trim. |
| SS 304 | Excellent corrosion resistance, highly formable, and standard versatile grade. | Food processing equipment, kitchenware, and commercial appliances. |
| SS 304L | Lower carbon content than 304, minimizing carbide precipitation for better weldability. | Heavy-gauge welded components and general chemical fabrication. |
| SS 316 | Molybdenum bearing for high resistance to chlorides and marine environments. | Marine hardware, chemical processing industry, and coastal architecture. |
| SS 316L | Low carbon version of 316; eliminates weld-boundary carbide precipitation. | Pharmaceutical machinery, medical implants, and aggressive chemical storage. |
| SS 321 | Stabilized with titanium; exhibits excellent resistance to scaling and intergranular corrosion at high temperatures. | Aircraft exhaust systems, heat exchangers, and boiler components. |
| SS 430 | Ferritic grade; good corrosion and formability characteristics, magnetic, and highly polishable. | Decorative appliance panels, automotive trim, and interior architectural molding. |
Segmented Dimensions by Application
To match specific industrial requirements, slit coils are generally categorized into three primary dimensional tiers:
-
Ultra-Thin / Precision Strip
-
Thickness: 0.05 mm to 0.3 mm
-
Width: 2.0 mm to 100 mm
-
Primary Uses: Electronic connectors, medical shims, spring clips, and precision diaphragms.
-
-
Light to Medium Gauge (Standard Manufacturing)
-
Thickness: 0.4 mm to 3.0 mm
-
Width: 10 mm to 500 mm
-
Primary Uses: Automotive exhaust components, kitchen appliances, tubing, and stamped brackets.
-
-
Heavy Gauge
-
Thickness: 3.1 mm to 6.0 mm (or greater on heavy-duty slitting lines)
-
Width: 50 mm to 600 mm
-
Primary Uses: Structural hardware, heavy machinery components, and industrial flanges.
-
Coil Weight and ID/OD Configurations
In addition to thickness and width, material handling systems require matching coil diameters and weights:
-
Inner Diameter (ID): Standard industry sizes are 300 mm, 400 mm, 508 mm (20 inches), and 610 mm (24 inches), configured to fit the expansion mandrels of downstream production lines.
-
Outer Diameter (OD): Typically ranges from 800 mm up to 1,800 mm, depending on the customer’s maximum lifting and uncoiling weight capacities.
1. Material Savings
Ordering slit coils in the required width helps reduce scrap and eliminates additional cutting on the shop floor.
2. Improved Production Efficiency
Slit coils are tailored to feed directly into specific production lines, such as automated stamping presses, roll forming machines, or tube mills. This seamless compatibility removes the need for preparatory in-house cutting, allowing production lines to operate more efficiently.
3. Better Handling
Full-width mother coils are incredibly heavy and require specialized, high-capacity cranes and forklifts to move. Slit coils are narrower, lighter, and more modular, making them significantly safer and easier for operators to handle, maneuver, and store within the warehouse.
4. Reduced Processing Time
By eliminating the secondary step of resizing or shearing raw material on-site, manufacturers save labor, setup time, and processing costs. Production becomes a continuous, single-stage operation where the coil is mounted and immediately processed.
5. Consistent Width Accuracy
Industrial slitting lines utilize highly calibrated rotary knives and precision spacers to maintain consistent dimensional tolerances. This guarantees that the width remains perfectly uniform from the outer wrap of the coil all the way to the inner core, eliminating variance defects.
6. Cost-Effective Manufacturing
The combination of minimized scrap, faster production cycles, reduced labor hours, and lower equipment wear directly translates to a lower cost per part. Relying on precision slit coils optimizes the entire supply chain, helping reduce manufacturing costs.
Applications of Stainless Steel Slitting Coils
Automotive
-
Trim Components: Interior/exterior trims, window channels, mirror brackets.
-
Structural Parts: Brackets, heat shields, seat belt mechanisms, exhaust pipes.
Construction
-
Profiles: Angles, channels, purlins, cable trays.
-
Cladding Systems: Roofing strips, wall panels, facades, expansion joints.
Food Processing
-
Hygienic Components: Kitchenware, mixing blades, conveyor guides, counter parts.
Chemical Processing
-
Tanks: Reinforced bands, baffles, supports.
-
Equipment Parts: Gaskets, valves, filter screens, heat exchanger fins.
Electrical
-
Enclosures: Switchboxes, control panels, junction boxes.
-
Components: Spring clips, grounding straps, connectors, cable shielding.
Tube & Pipe Manufacturing
-
Raw Material: Slit coils fed into tube mills for welded structural, ornamental, and fluid pipes.
Quality Parameters Checked in Slit Coils
Manufacturers inspect slit coils before dispatch to ensure they meet customer specifications for width, thickness, edge quality, and surface finish. Half of these critical assessments verify the exact physical boundaries of the coil, while the other half evaluate the material’s surface and edge conditions to guarantee flawless machinery integration.
Core Quality Parameters
-
Width Tolerance: Verified using precision digital calipers to confirm the strip matches the exact dimension required, preventing line jams in automated downstream machinery.
-
Coil ID and OD: Measured precisely to guarantee the finished product physically fits the specific expansion mandrels and lifting weight limitations of the customer’s uncoiling equipment.
-
Flatness: Evaluated to eliminate shape defects like coil camber, edge waves, or center buckles that cause tracking and alignment issues in high-speed stamping presses.
-
Edge Quality & Burr Height: Monitored closely because mechanical shearing leaves microscopic ridges; keeping burr height within strict fractions of a millimeter ensures clean fits during subsequent welding and prevents operator lacerations.
-
Surface Finish: Inspected visually and electronically to detect scratches, pitting, or laminations that could compromise the metal’s aesthetic value or its underlying corrosion resistance.
Sourcing your materials from a reliable manufacturer or super stockiest, such as Unimix Metal Corporation, ensures that your production lines can operate more efficiently with fewer interruptions. When sourcing stainless steel slit coils, it is important to work with a supplier that can provide consistent quality, reliable delivery schedules, and proper material documentation.
- Precision Slitting Capability: Reputable manufacturers use precision slitting equipment to maintain good edge quality and consistent dimensions. Minimal burr heights, and uniform flatness across the entire length of the coil.
- Consistent Quality: Leading industrial suppliers maintain stringent compliance with international standards (such as ASTM or ISO 9001:2015) to ensure that mechanical properties, chemical compositions, and finishes remain uniform from batch to batch.
- Fast Delivery: Working with an established global exporter and distributor like Unimix Metal Corporation leverages vast inventory grids and optimized logistics.
- Custom Dimensions: Reliable producers provide bespoke slitting. Precisely customized choices exactly to your tooling requirements, handling tight thickness parameters (e.g., from ultra-thin precision strips up to heavy gauges) and exact target widths.
- Material Traceability: Trustworthy suppliers complete Mill Test Certificates (MTCs) and ensure absolute raw material traceability, essential for demanding industrial applications in the aerospace, automotive, and chemical processing sectors.
- Technical Support: Partnering with industry veterans provides you with direct access to metallurgical expertise, helping you select the most suitable stainless-steel grade for your operating environment and application requirements. to combat your specific environmental and wear challenges.
Frequently Asked Questions
What is a stainless steel slitting coil?
It is a narrow strip of steel produced by cutting a wider “mother coil” lengthwise to match precise manufacturing widths.
How is a slit coil manufactured?
A mother coil is uncoiled and fed through a slitting head with rotary knives that shear the metal into narrower strands, which are then tensioned and rewound onto an exit mandrel.
What grades are available in slit coils?
Commonly available grades include SS 304 (food grade), SS 316 (marine/chemical), SS 304L/316L (welding), SS 321 (heat resistant), SS 430 (decorative), and SS 201 (economical).
What thicknesses can be slit?
Standard processing ranges from ultra-thin precision foils at 0.05 mm up to heavy-duty industrial gauges of 6.0 mm.
What industries use slit coils?
They are widely used in automotive assembly (exhausts/brackets), tube and pipe mills (raw material), appliances (drums/panels), and construction (structural profiles).
What is the difference between a slit coil and a strip?
A slit coil is mechanically sheared from a wider master coil, whereas a strip generally refers to exceptionally narrow material that is often rolled directly to its final width at the mill.
